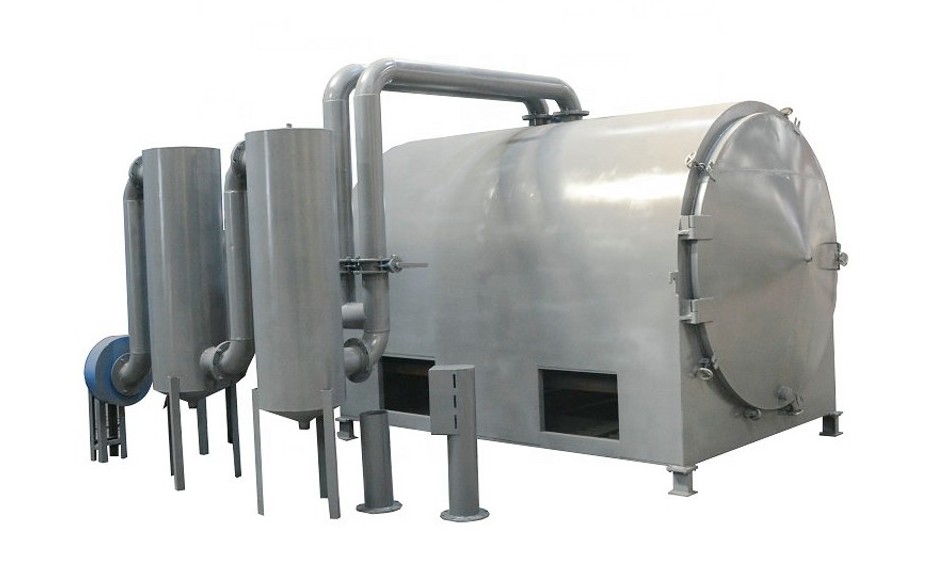

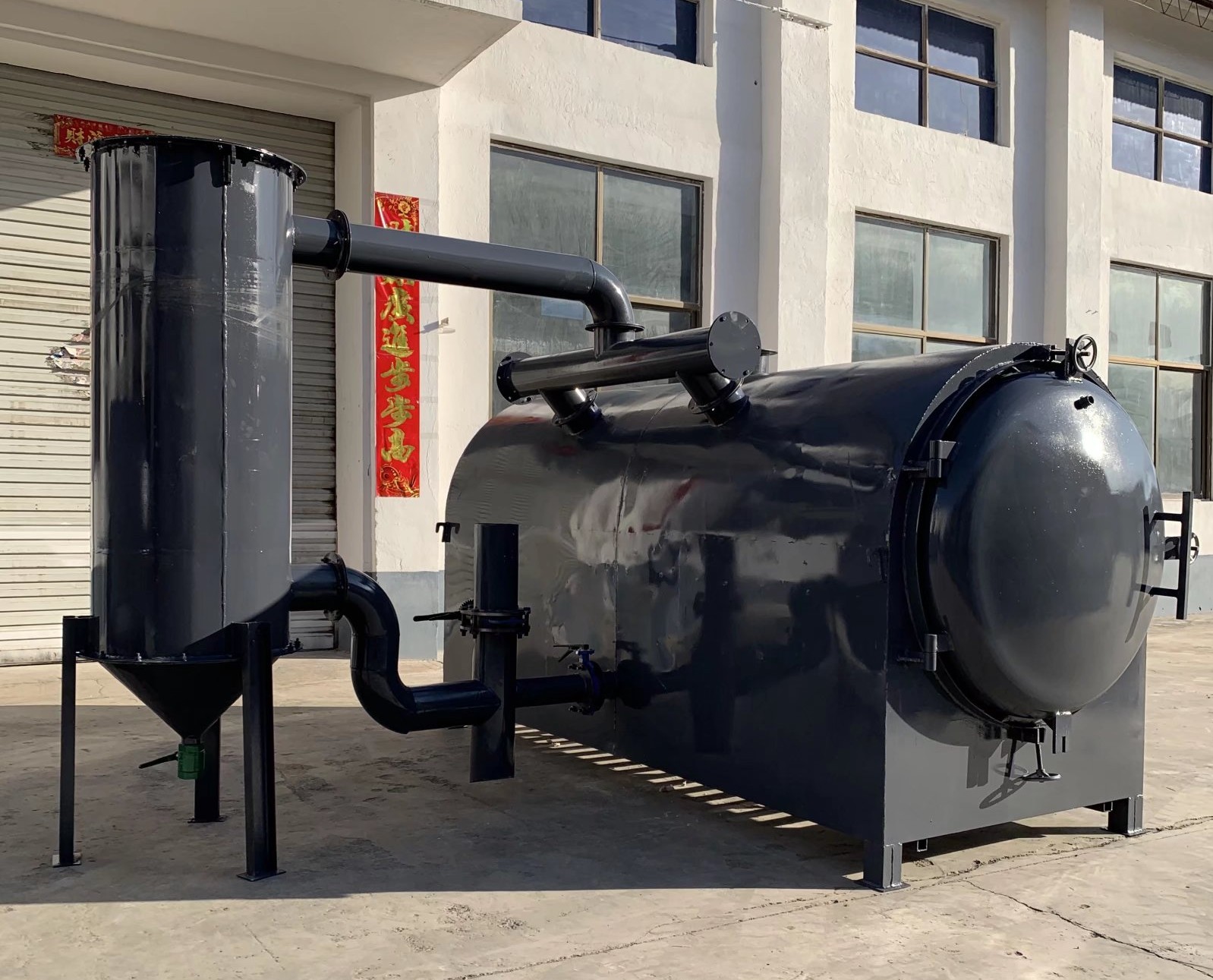

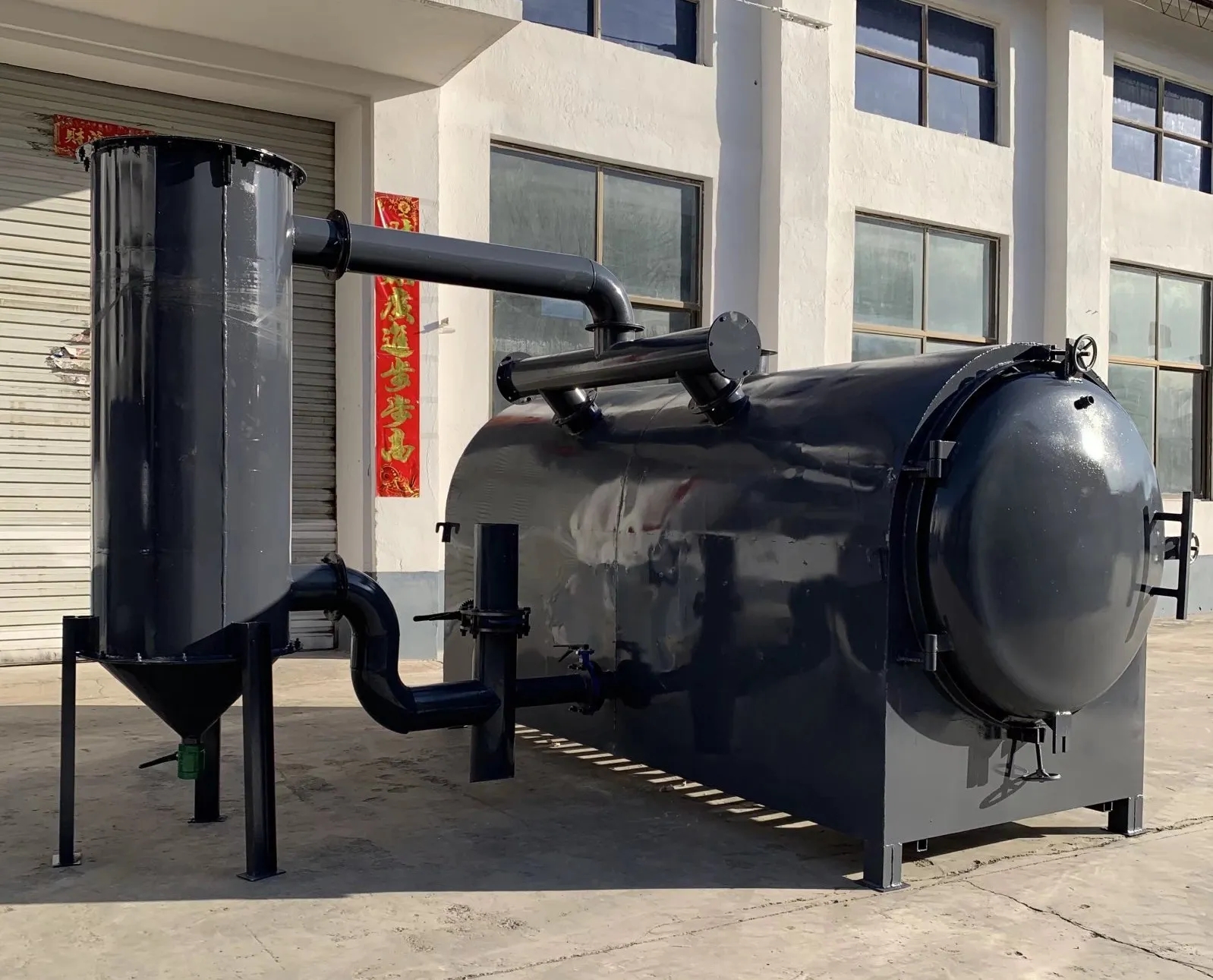

This Industrial horizontal charcoal carbonization furnace is an internal heat carbonization furnace, which can carbonize a variety of raw materials, such as bamboo, coconut shell, palm shell and other large materials. As it is of internal heat type, the high-temperature flue gas generated by the carbonized flue gas after full combustion in the flue gas incineration chamber and flue gas passage is used to drive the carbonization furnace. No energy is needed to be added in the carbonization process.

Product Description

 Horizontal charcoal furnace Feature

• Apply for many kinds of biomass raw materials, such as wood, wood log, tree branch, wood stick, wood waste, wood briquette, coconut shell, bamboo, olive husk, palm kernel shell, cashew nut shell, etc.


• Easy to operate, safety, environmental protection and high production efficiency.

• It is the main ideal equipment of the charcoal production line.

All kinds of wood, wood chips, wood branches, wood sawdust, wood wastes and other kinds of biomass like rice husks, peanut shells, coconut shells, wheat brans, stalks,tree branches, bamboo etc. And, the biomass briquettes like rice husk briquettes, wood briquettes can also be carbonized by our machine

Related Products

Working principle of charcoal carbonization furnace

Preparation

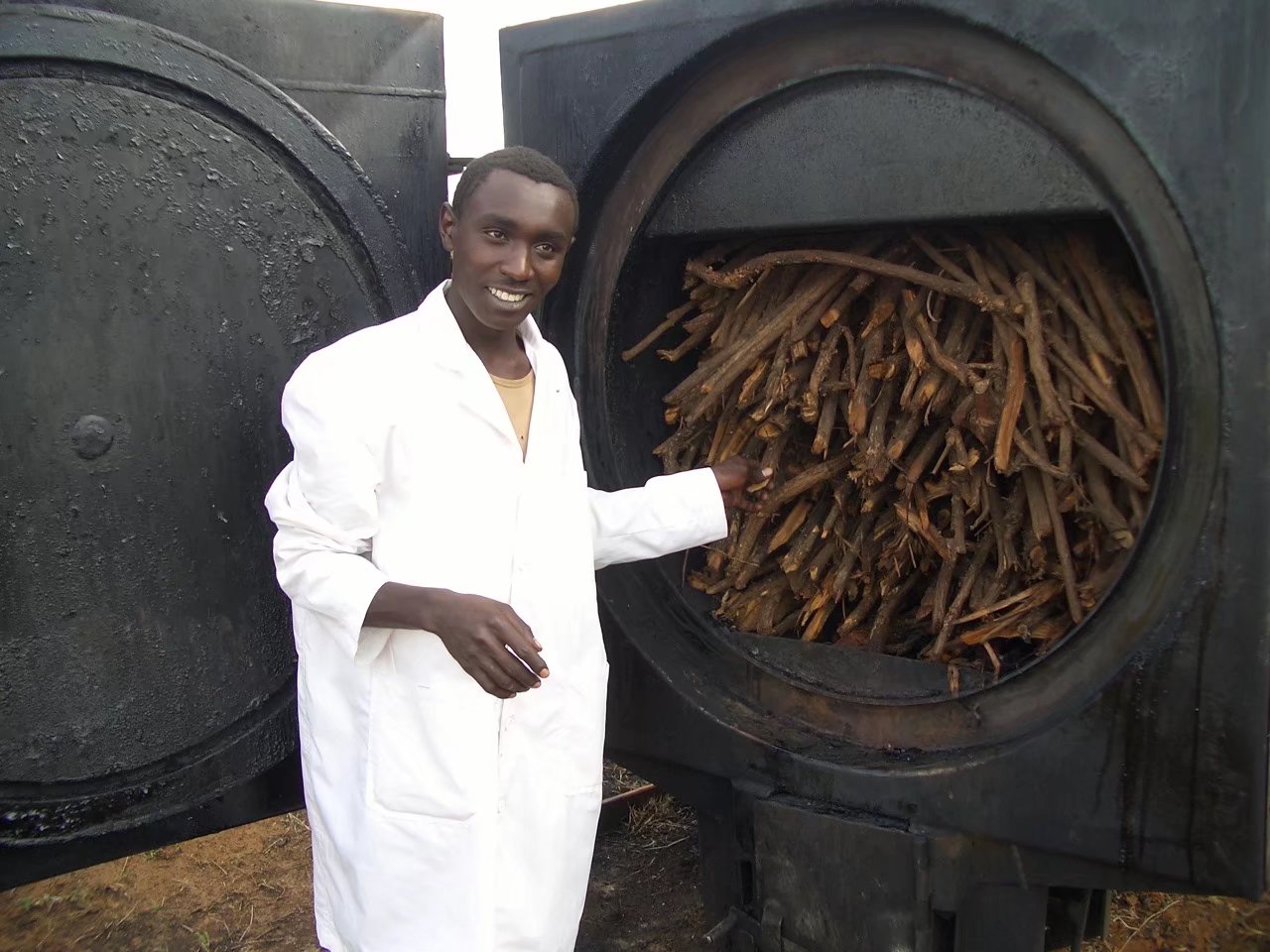

Open the lid of carbonization furnace, lift out the inner tank, put raw material in, then put the inner tank back. Close the lid then seal it so that no oxygen could come inside.

Heating
After sealing process, use wood waste or gas to heat furnace from the bottom. After 10 minutes burning, the temperature reaches 90℃, turn to use slow fire to heat. This process will take 60-120 minutes to reduce water vapor from your materials.

Carbonization
Keep heating, after the temperature reaches 180-235 ℃, the raw material will produce flammable gas from the inner tank. Reuse the gas as fuel to heat the inner tank. The whole process will last about 8 hours. When the temperature reaches highest and no flammable gas is produced, the carbonization process is finished.

Cooling
Lift the inner tank out. Let it cool naturally. The longer cooling time is, the better quality of charcoal is. After about 10 hours, you can take charcoal out.
